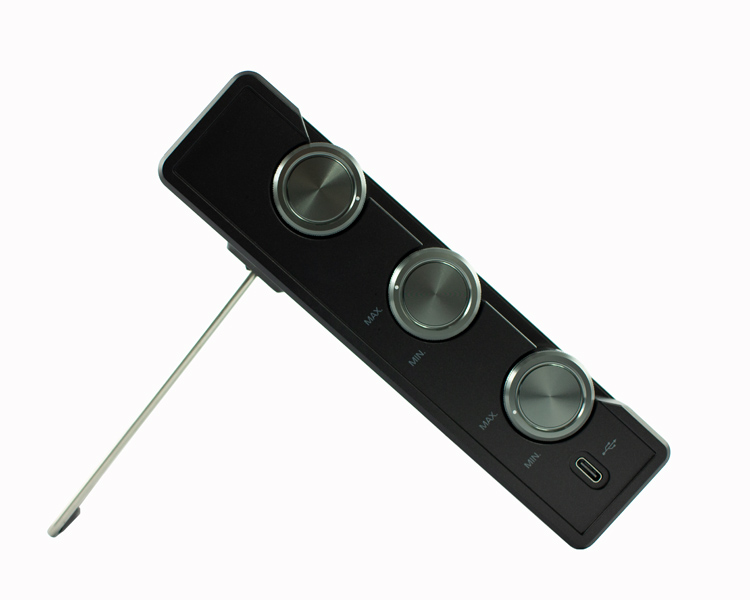

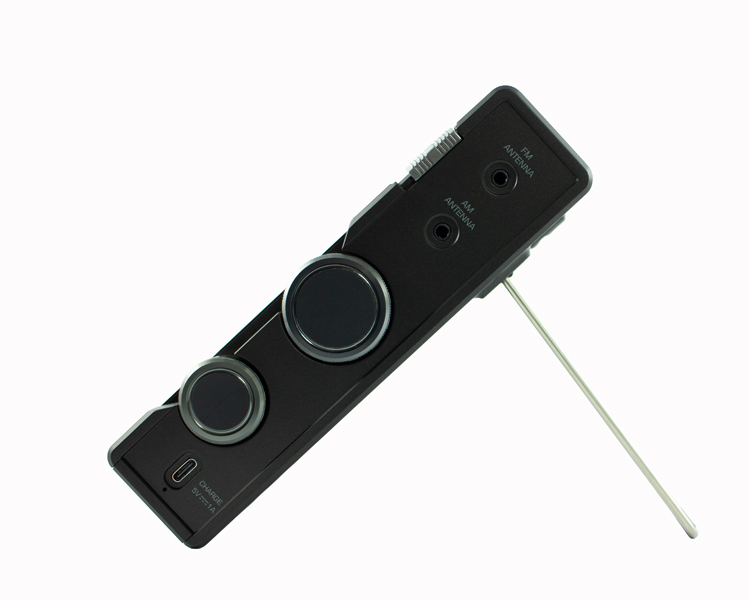

Tecsun H-501x radio
Tecsun H-501x can receive FM, Longwave (LW), Medium Wave (MW) and Shortwave (SW) frequency bands and is Single Sideband (SSB) capable.
This radio receiver is equipped with an analog High-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations (image rejection). Like other Tecsun models, it comes with a variety of "hidden features".
This radio receiver is equipped with an analog High-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations (image rejection). Like other Tecsun models, it comes with a variety of "hidden features".
The full-range dual speaker design, Class AB Amplifier circuit and independent treble and bass control knobs make listening to radio stations and the added audio playback feature (from a microSD card) even more enjoyable.
Package Contents
- Tecsun H-501x
- Tecsun EP-20 stereo earphones
- 16GB microSD card
- Tecsun PU leather carrying case
- Line-in audio cable with 3.5mm plugs
- Charging cable (USB type-C to standard USB type-A)
- Dual USB wall charger with European type-C plug
- Radio amateur world map
- English manual
- 2 x Tecsun 18650 2600mAh Li-ion batteries
Special Features
- Triple conversion AM IF
- Synchronous detection & SSB
- SSB (USB / LSB) fine tuning steps at 10 Hz
- Antenna socket (3.5mm) for FM
- Antenna socket (3.5mm) for AM (LW, MW and SW)
- Audio player: music playback from microSD
- AM bandwidth settings:
- LW/MW: 2.3, 3.5, 5.0 and 9.0kHz
- SW: 2.3, 3.5, 5.0 and 6.0kHz
- SSB: 0.5, 1.2, 2.3, 3.0 and 4.0kHz
Frequency Range
- FM: 64 – 108 MHz
- 64.0 – 108 MHz
- 76.0 – 108 MHz
- 87.0 – 108 MHz
- 87.5 – 108 MHz
Tuning steps of 50 kHz or 100 kHz (depends on MW steps setting)
Fine tuning steps of 10 kHz
- MW: 520 – 1710 kHz
- 522 - 1620 kHz (tuning steps of 9 kHz)
- 520 - 1710 kHz (tuning steps 10 kHz)
Tuning steps of 9 kHz or 10 kHz
Fine tuning steps of 1 kHz
- LW: 50 kHz to 522 kHz
- 50 – 522 kHz (when MW tuning is set to 9 kHz)
- 100 – 519 kHz (when MW tuning is set to 10 kHz)
Tuning steps of 9 kHz
Fine tuning steps of 1 kHz
- SW: 1621 kHz to 29999 kHz
- 1621 – 29999 kHz (when MW tuning is set to 9 kHz)
- 1711 – 29999 kHz (when MW tuning is set to 10 kHz)
Tuning steps of 5 kHz
Fine tuning steps of 1 kHz
Tuning Methods
- Direct keypad entry
- Auto scan
- Manual dial tuning
Storing Stations Methods
- Manually: tune into a station using the knobs and then store them
- Storing stations during auto-scan
- Auto Tuning Storage (ATS): automatically tune and store stations
- Recall stations by browsing the memory manually or by auto-scan
Audio Player Features
- Audio playback from microSD card (max. 128GB)
- Supported audio formats: 16bit / 44.1kHz, FLAC / WAV / APE / WMA and MP3.
- Basic playback controls
- Repeat single track
- Playback position memory
- Display does not show album/track name
- Computer speaker mode
Basic Features
- Signal strength and S/N ratio indication
- Clock & Alarm (24-hour format)
- 3150 stations storage locations, divided over 25 memory pages
- FM stereo / mono selection
- Dedicated tuning and fine-tuning knobs
- Alarm by radio or audio player
- Snooze function – 5 minutes
- Sleep timer from 1 - 120 minutes
- Class AB type Audio Power Amplifiers & ultra -dynamic full range speaker, with excellent sound quality
- Dedicated Bass and Treble control knobs
- LCD backlight (always-on or auto-off)
- Keylock function
- Rear metal tilt bail
- Local / Norm / DX antenna gain switch: adjust sensitivity
- Antenna socket (3.5mm) for FM
- Antenna socket (3.5mm) for AM (LW / MW / SW)
- Line-out jack (3.5mm)
- Line-in jack (3.5mm)
- Headphone jack (3.5 mm; 1/8 inch; < 300Ω)
- Digital audio input socket (micro-USB type-B)
- Speakers (6Ω, 3W x 2)
- Battery compartment holds two batteries.
- Battery selection switch to change between batteries.
Power / Charging
- Battery power: 1 x 18650 lithium (Li-ion) battery
- DC power (for FM only): 5V, USB-C
- Charging/Power: DC 5V/1A, USB-C
Unit Size
- 277 x 167 x 44 mm (W x H x D)
Specifications
- Sensitivity:
- FM (S / N = 30dB) < 3uV
- MW (S / N = 26dB) < 1mV/m
- LW (S / N = 26dB) < 3mV/m
- SW (S / N = 26dB) < 20uV
- SSB (S / N = 10dB) < 1uV
- Selectivity:
- FM > 65dB
- MW / LW > 40dB
- SW > 40dB
- S/N ratio:
- FM > 60dB
- MW / LW > 40dB
- SW > 45dB
- SYNC lock range: +/- 1kHz
- AM IF Frequency:
- 1st IF: 55.845MHz
- 2nd IF: 10.7MHz
- 3rd IF (DSP): 45kHz
- FM IF Frequency: 128kHz
- FM Stereo Crosstalk: 33dB
- Output Power: ≥ 500mW x 2 (at 10% harmonic distortion)
Product Code: 01-283Te00
Brand: Tecsun
Product Condition: New
weight: 2600.0g
An Analogue Radio Design Classic
Gearoid
Wednesday, November 12, 2025
I have owned the Tecsun H501x for approximately 3 years. I purchased the radio from this website.I have owned many radios over the years.The H501x is simply the best sounding radio in its class. FM stereo, Bluetooth and SD card functions are fantastic and AM ranges also sound excellent with very low distortion, wide band recovery of audio. You can get the most out of this radio by using the external antenna facilities.For example it works really well with simple tecsun passive tuned loops for mw(also available on this site) or the C Crane active amplified tuned loopstick. In low noise areas you can also use the telescopic antenna for AM ranges including MW and LW and in this mode the radio is very sensitive. SW is also generally excellent -high sensitivity, well choosen bandwidth settings and excellent ssb recovery. The cabinet style, twin audio amps, speakers are very well designed and treble and bass lift is an excellent feature giving the user control over his/her desired sound. The radio is well laid out and easy to use and in my view a design classic. No radio is perfect so I would prefer better power arrangements to increase battery time(there are simple work arounds for this issue), RDS for FM and a better quality sync circuit for AM ranges and higher sensitivity from the internal ferrite bar used for MW/LW ranges. These limitations aside, I recommend highly this radio for anyone looking for a versatile SW/MW/LW/FM/BT/SD Card radio in hardback book size format.
