Tecsun H-501x radio

€318.92 inc. tax

€268.00 ex. tax

? Tax based on Germany.

Quantity

Add to Cart

Add To Wishlist

Tecsun H-501x can receive FM, Longwave (LW), Medium Wave (MW) and Shortwave (SW) frequency bands and is Single Sideband (SSB) capable.

This radio receiver is equipped with an analog High-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations (image rejection). Like other Tecsun models, it comes with a variety of "hidden features".

The full-range dual speaker design, Class AB Amplifier circuit and independent treble and bass control knobs make listening to radio stations and the added audio playback feature (from a microSD card) even more enjoyable.

Package Contents

Tecsun H-501x

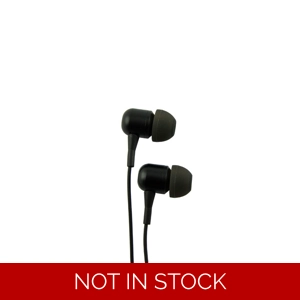

Tecsun EP-20 stereo earphones
16GB microSD card
Tecsun PU leather carrying case
Line-in audio cable with 3.5mm plugs
Charging cable
Dual USB wall charger with European type-C plug
Radio amateur world map
English manual
2 x Tecsun 18650 2600mAh Li-ion batteries

Special Features

Triple conversion AM IF
Synchronous detection & SSB
SSB (USB / LSB) fine tuning steps at 10 Hz
Antenna socket (3.5mm) for FM
Antenna socket (3.5mm) for AM (LW, MW and SW)
Audio player: music playback from microSD
AM bandwidth settings:
- LW/MW: 2.3, 3.5, 5.0 and 9.0kHz
- SW: 2.3, 3.5, 5.0 and 6.0kHz
- SSB: 0.5, 1.2, 2.3, 3.0 and 4.0kHz

Frequency Range

FM: 64 – 108 MHz
- 64.0 – 108 MHz
- 76.0 – 108 MHz
- 87.0 – 108 MHz
- 87.5 – 108 MHz

Tuning steps of 50 kHz or 100 kHz (depends on MW steps setting)

Fine tuning steps of 10 kHz

MW: 520 – 1710 kHz
- 522 - 1620 kHz (tuning steps of 9 kHz)
- 520 - 1710 kHz (tuning steps 10 kHz)

Tuning steps of 9 kHz or 10 kHz

Fine tuning steps of 1 kHz

LW: 50 kHz to 522 kHz
- 50 – 522 kHz (when MW tuning is set to 9 kHz)
- 100 – 519 kHz (when MW tuning is set to 10 kHz)

Tuning steps of 9 kHz

Fine tuning steps of 1 kHz

SW: 1621 kHz to 29999 kHz
- 1621 – 29999 kHz (when MW tuning is set to 9 kHz)
- 1711 – 29999 kHz (when MW tuning is set to 10 kHz)

Tuning steps of 5 kHz

Fine tuning steps of 1 kHz

Tuning Methods

Direct keypad entry
Auto scan
Manual dial tuning

Storing Stations Methods

Manually: tune into a station using the knobs and then store them
Storing stations during auto-scan
Auto Tuning Storage (ATS): automatically tune and store stations
Recall stations by browsing the memory manually or by auto-scan

Audio Player Features

Audio playback from microSD card (max. 128GB)
Supported audio formats: 16bit / 44.1kHz, FLAC / WAV / APE / WMA and MP3.
Basic playback controls
Repeat single track
Playback position memory
Display does not show album/track name
Computer speaker mode

Basic Features

Signal strength and S/N ratio indication
Clock & Alarm (24-hour format)
3150 stations storage locations, divided over 25 memory pages
FM stereo / mono selection
Dedicated tuning and fine-tuning knobs
Alarm by radio or audio player
Snooze function – 5 minutes
Sleep timer from 1 - 120 minutes
Class AB type Audio Power Amplifiers & ultra -dynamic full range speaker, with excellent sound quality
Dedicated Bass and Treble control knobs
LCD backlight (always-on or auto-off)
Keylock function
Rear metal tilt bail
Local / Norm / DX antenna gain switch: adjust sensitivity
Antenna socket (3.5mm) for FM
Antenna socket (3.5mm) for AM (LW / MW / SW)
Line-out jack (3.5mm)
Line-in jack (3.5mm)
Headphone jack (3.5 mm; 1/8 inch; < 300Ω)
Digital audio input socket (micro-USB type-B)
Speakers (6Ω, 3W x 2)
Battery compartment holds two batteries.
Battery selection switch to change between batteries.
